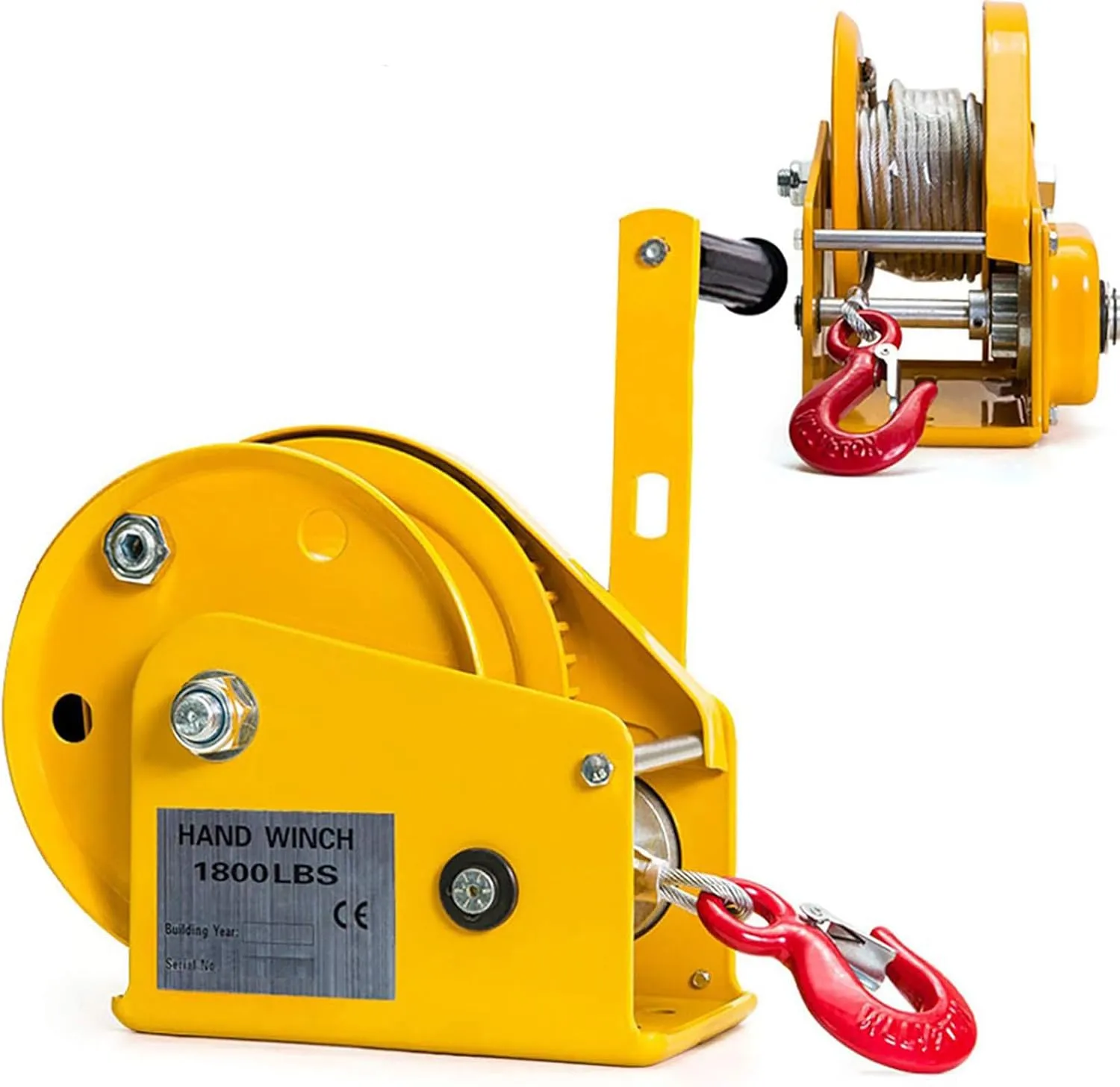

- ■【Manual Winch】: The manual winch with automatic brake, steel cable and alloy steel hook. Cable length: 8m-30m, handle length: 250mm (1200lbs)/280mm (1800lbs), base size: 136 × 90mm/195 × 108mm, wire rope diameter 4mm/5mm.
- ■【Structure】: Robust steel structure, hardened steel gears. Gear ratio 4:1, high carbon steel gear, wear resistance, longer service life, strong corrosion resistance.
- ■【Enhanced Safety】: Equipped with bidirectional self-locking mechanism and automatic brake, our manual winch ensures secure handling and prevents sudden slips or accidents, making it an essential tool for any lifting or pulling task.
- ■【Comfortable Handle】: Ergonomics crank handle, makes It easier to turn,anti-slip handle to reduce hand fatigue, labor saving ratio 75% , to ensure safety, easy to shake the crank.
- ■【Versatile Functionality】: With its multifunctional use, our manual winch is a versatile tool that can assist you in various tasks such as towing vehicles, lifting heavy objects, or even securing cargo during transportation. Experience the convenience of having one tool for multiple purposes.
The manual winch is equipped with a two-way automatic brake device.
Feature:
1. Our boat trailer winch with cable and hook. Ideal for workshop, garage, truck, etc.
2. Smooth action crank, for smooth, easy and powerful pulling power.
3. Robust steel structure, hardened steel gears. Gear ratio 4:1.
4. Zinc plated finish for resistance to weather corrosion.
5. Double-sided gears provide nice extra protection against slipping while loading.
Specification:
Product Name: Hand Crank Winch
Load capacity: 1200lbs/1800lbs
Side pull: 500kg/800kg
Longitudinal tension: 150 kg/300 kg
Gear ratio: 4:1
Hand force: 180N/190N
Weight: 3.8kg/8kg
Wire rope diameter: 4mm/5mm
Wire rope length: 8m/15m/20m/30m
Roller Caster Diameter: 132mm/180mm
Roller caster inner diameter: 48mm/60mm
Package includes:
Heavy Duty Hand Winch*1
Notes:
1. Due to manual measurement, there may be an error of 2-3cm.
2. Due to the screen display, the color may be slightly different.
